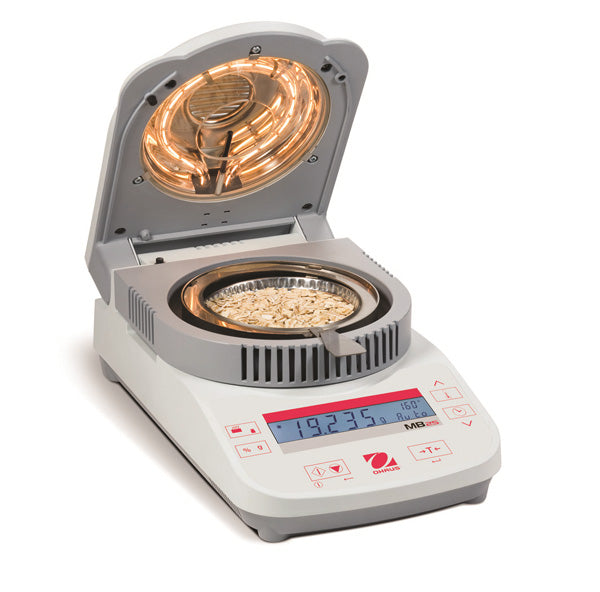

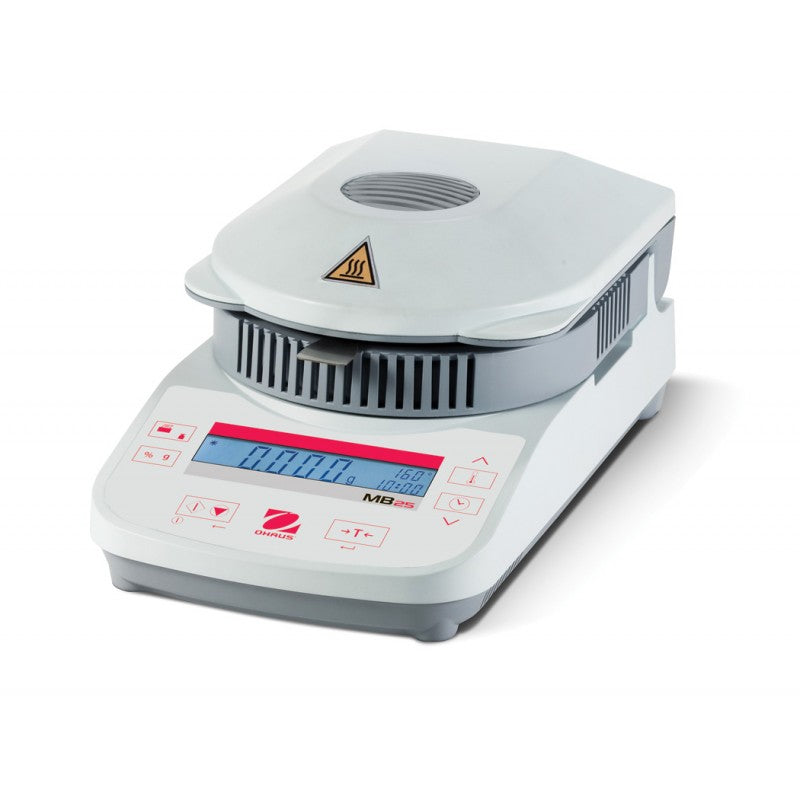

Moisture Analyser MB25 110G X 0.005G

Application:Percent Moisture Determination, Percent Solid Determination, Weighing



Display:Backlit Liquid Crustal Display (LCD)



Operation:Power cord (included)



Communication:RS232 (included)



Construction:Halogen heat source, ABS housing, metal pan support, metal pan handler, in-user cover



Design Features: 3 shut off criteria (manual, timed or auto), 1 standard heating profile, 50º to 160ºC heating range (5ºC increments)







Maximum capacity: 110 g



Readability: 5mg/0.05%



Pan Size (LxW) 90 mm



Dimension (HxLxW) 127mm x 280 mm x 165 mm



Net Weight: 2.1 kg



Heater Type: Halogen Lamp



Communication: RS232 (included)

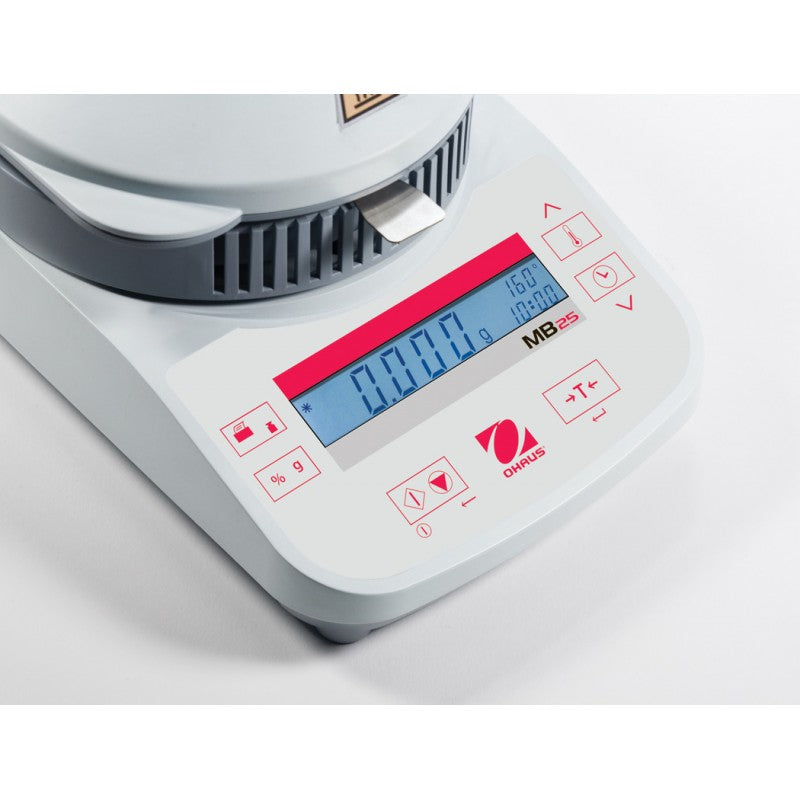

Display: LCD with backlight



In-use Cover Included



Power: AC Adapter (included)



Shut-Off Criteria Automatic Preset Weight Loss/Time; Timed; Manual



Temperature Range:  50ºC - 160ºC



Units of Measurement: Gram



Working Environment: 10ºC - 40ºC, 80%RH, non-condensing
