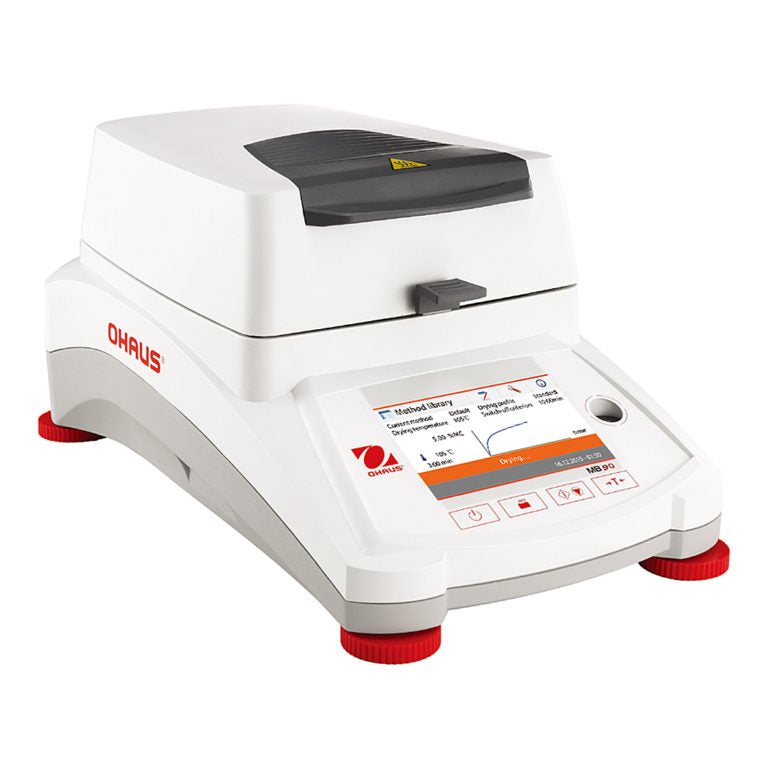

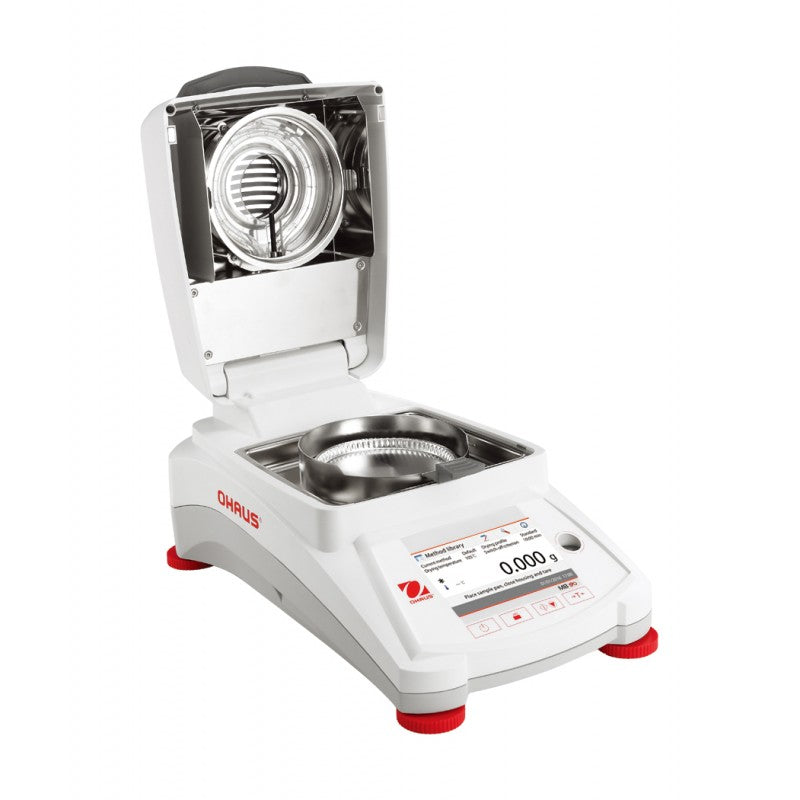

Moisture Analyser MB90 - 90G X 0.001G





Application: Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing



Display: 4.3_ TFT color touchscreen display



Operation: Power cord (included)



Communication: RS232 with GLP/GMP data output, USB Host and USB Device (included)



Construction: Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover







Maximum capacity:  90 g



Readability: 1 mg/0.01%



Pan Size (LxW) 90 mm



Dimension (HxLxW) 210mm x 180 mm x 350 mm



Net Weight: 5.23 kg



Heater Type: Halogen Lamp



Communication: RS232; USB Host x 2; USB Device



Display: 4.3_ TFT color touchscreen display



Heating Profiles: Standard; Fast



In-use Cover: Included



Moisture Range: 0 % - 100 %



Sample Size: 0.5 g - 90 g



Power: AC Adapter (included)



Temperature Range: 40ºC - 230ºC



Units of Measurement: Gram; %MC; %RG; %DC



Working Environment 10ºC - 40ºC, 85%RH, non-condensing
