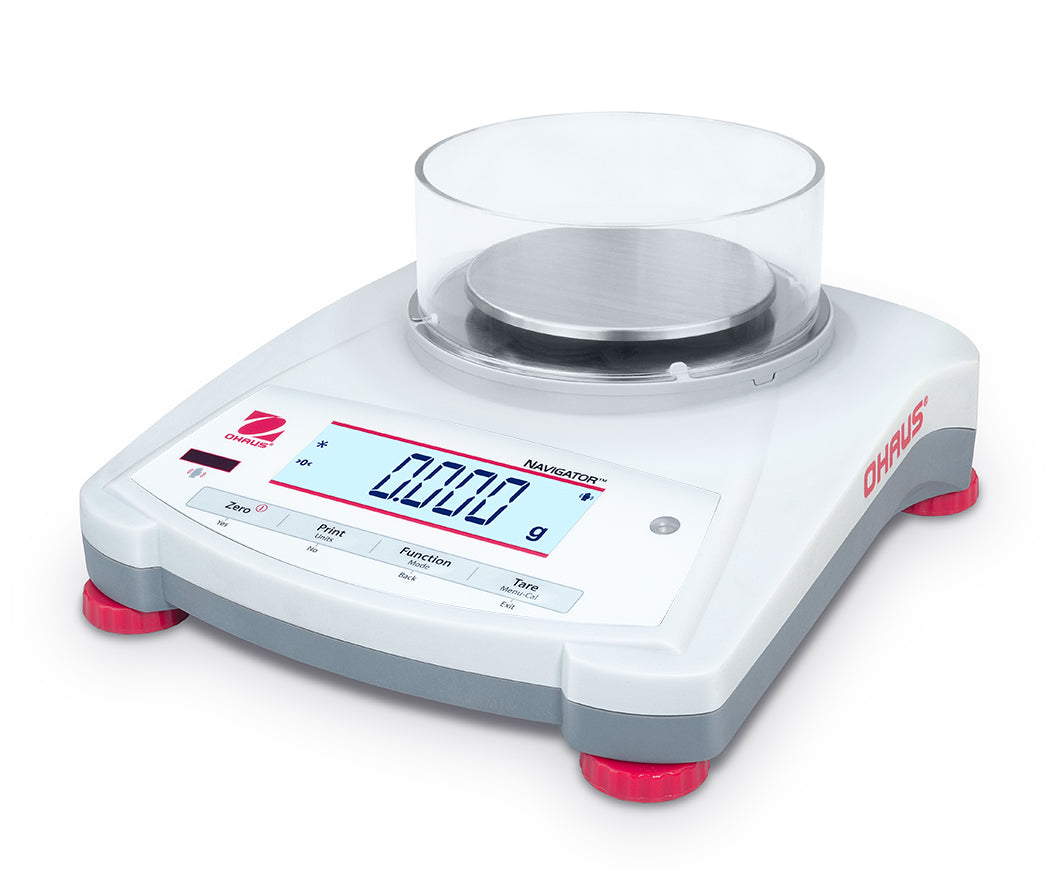

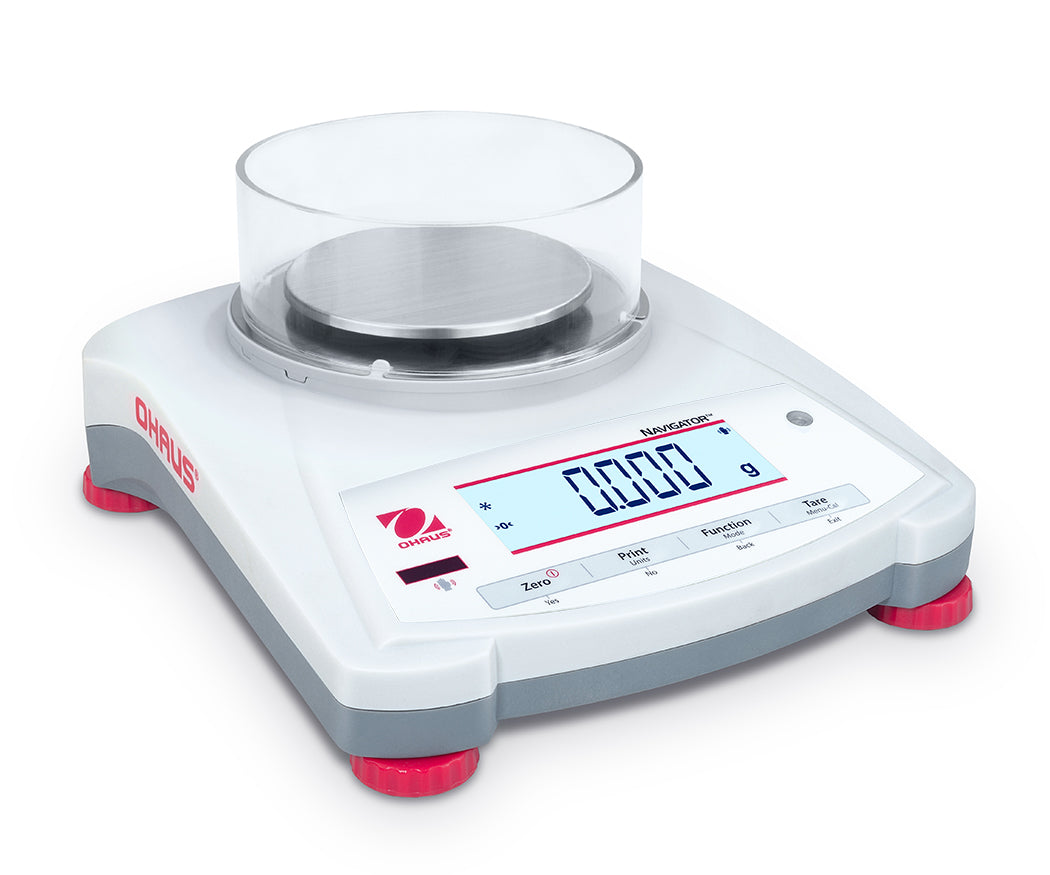

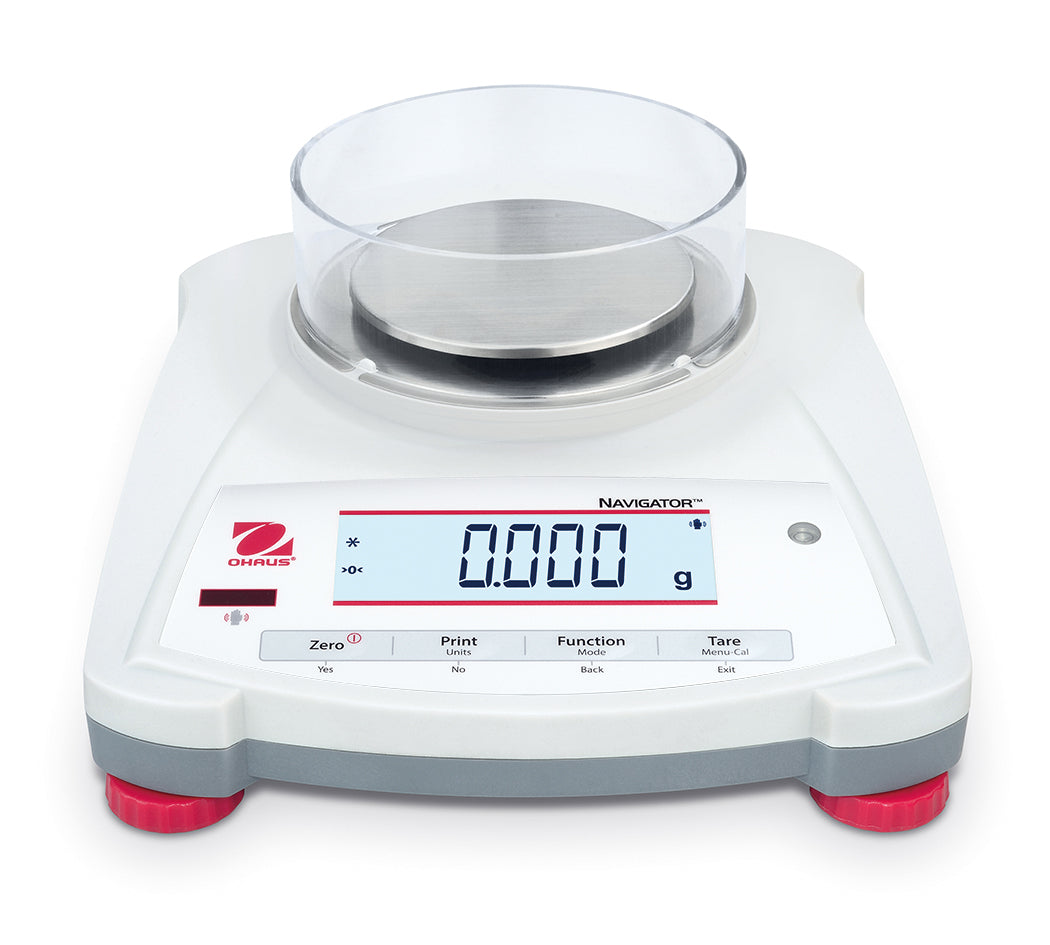

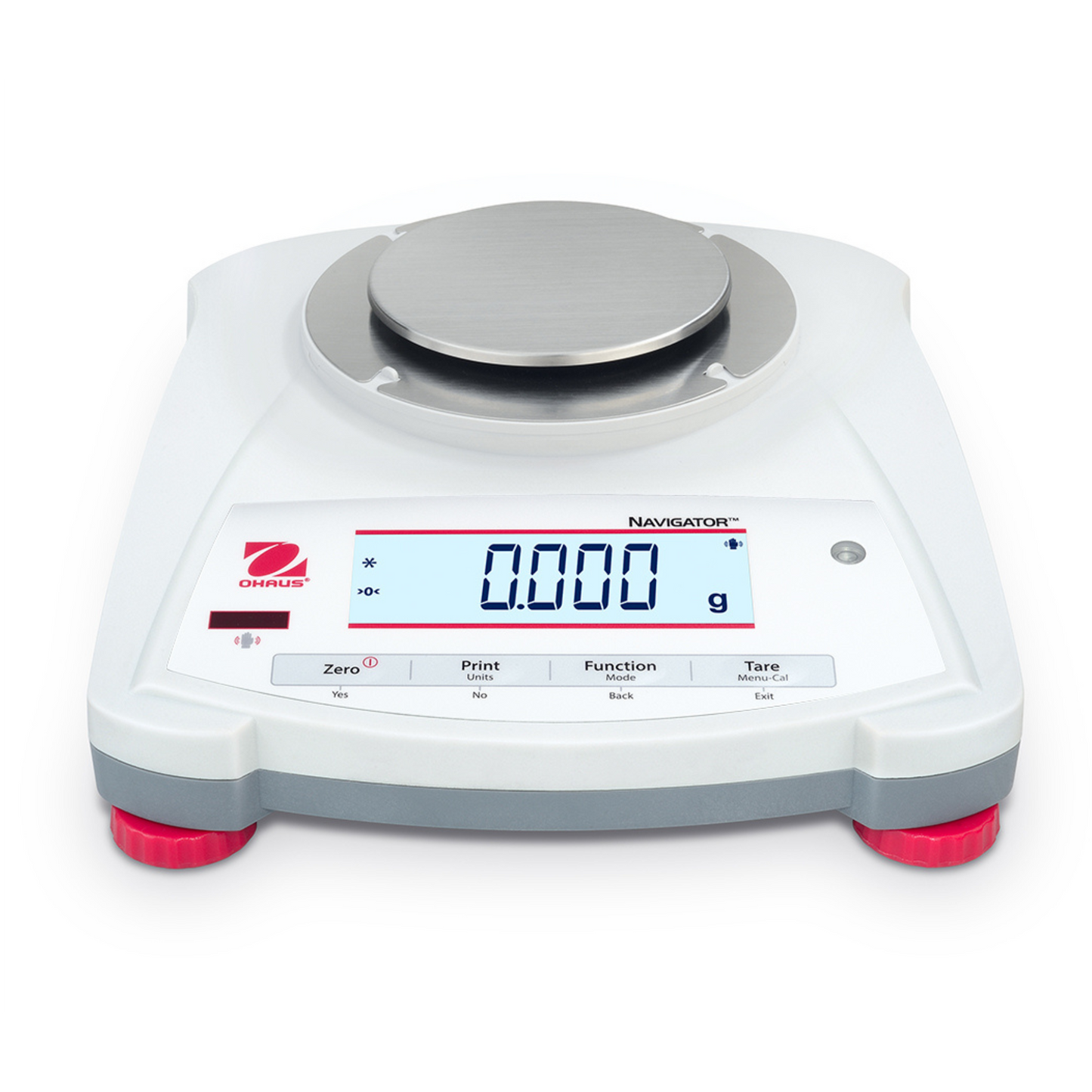

Ohaus Navigator NV323 Balance - 320G x 0.001G





Applications



• Weighing
• Parts Counting
• Percent Weighing
• Checkweighing



Display



• Liquid Crystal Display (LCD) with backlight



Operation



• AC adapter (included)
• 4 C batteries (not included)



Communication



• RS232
• USB
• Ethernet (available as accessories)



Construction



• ABS housing with stainless steel pan
• Transportation lock
• Adjustable and slip-resistant feet
• Leveling bubble



Design Features



• Menu and calibration lock switch
• Mechanical and software overload/underload protection (4x times)
• Stability indicator
• Low battery indicator
• Auto shut-off
• User-selectable print options
• User-selectable communication settings



Warranty:



1-year Ohaus Australia warranty







Maximum Capacity	320 g
Readability	0.001 g
Pan Size	3.7 in (93 mm)
Battery Life	200 Hours with Disposable Batteries
Communication	Ethernet (Available as an Accessory); RS232 (Available as an Accessory); USB Device (Available as an Accessory)
Auxiliary Display Model	Not Applicable
Dimensions	9.1 in x 4.2 in x 8 in (230 mm x 104 mm x 204 mm) (LxHxW)
Display	LCD Display with white backlight
In-Use Cover	No
Legal for Trade	Not applicable
Linearity	0.005 g
Net Weight	2.2 lb (1 kg)
Pan Construction	Stainless Steel
Power	4 C (LR14) Batteries (Not Included); AC Adapter (Included)
Repeatability, typical	0.002 g
Stabilization Time	2.5 s
Tare Range	To capacity by subtraction
Transportation Case	Available as an Accessory
Units of Measurement	Singapore Tael; Ounce Troy; Pennyweight; Newton; Taiwan Tael; Gram; Grain; Hong Kong Tael; Tola; Tical; Ounce; Carat
Working Environment	50ºF - 104ºF, 85%RH, non-condensing (10ºC - 40ºC, 85% RH, non-condensing)
