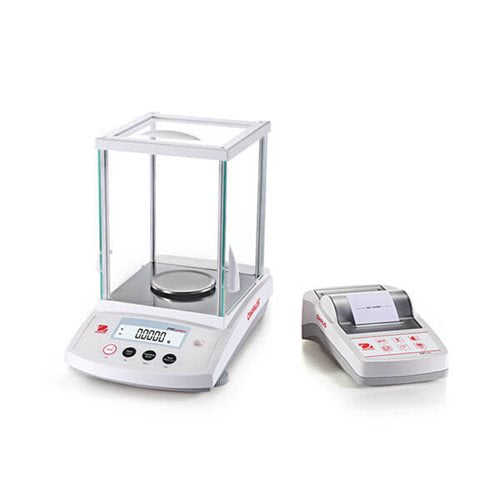

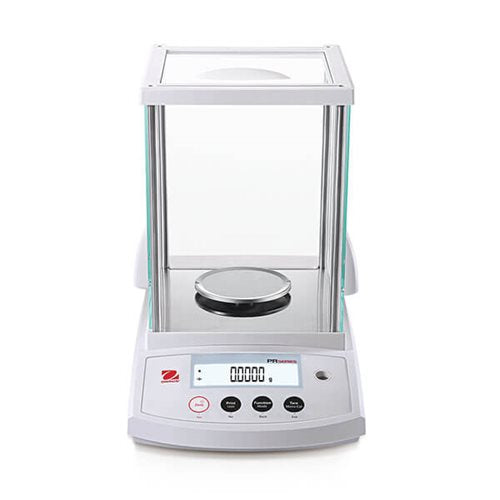

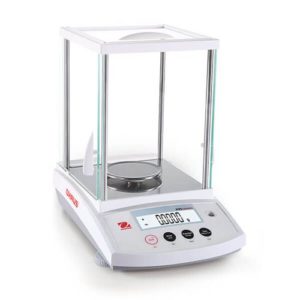

PR224 - Analytical Balance 220G X 0.1MG





Application:BasicWeighing, Parts Counting, Percent Weighing



Display:Backlit Liquid Crustal Display (LCD)



Operation:AC Adapter (included)

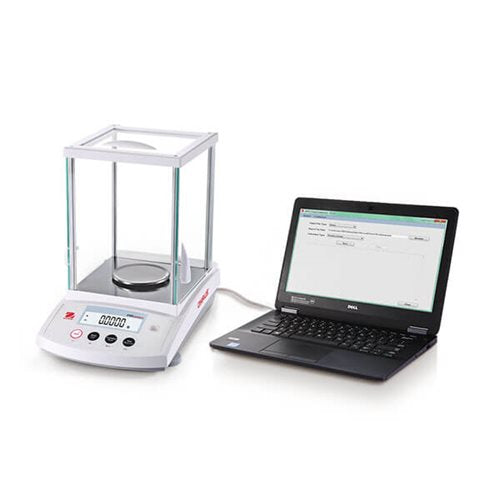

Communication:RS232 (one port included)



Construction:ABS top housing, removable stainless steel pan, removable glass draftshield with sliding top door, integrated weigh-below-hook, security bracket, calibration lock



Design Features: User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, user-selectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator







Maximum capacity 220 g



Readability 0.0001 g



Repeatability 0.0001 g



Linearity 0.0002 g



Minimum Weight (USP,200 mg



0.1% typical)



Net Weight 4.5 kg



Stabilisation Time 3 s



Pan Size (LxW) 90 mm



Dimension (HxLxW) 303mm x 317 mm x 201 mm



Internal Calibration InCal Semi Automatic



Draftshield  Included



Auto Door N/A



Display LCD with backlight



In-use Cover No



Legal for Trade No



Pan Construction Stainless Steel



Power AC Adapter (included)



Battery Life N/A



Built-in lonizer No



Communication RS232 (one port included)



Tare Range To capacity by subtraction



Units of Measurement: Carat; Grain; Gram; Kilogram; Milligram; Newton; Ounce; Ounce Troy; Pennyweight; Pound



Working Environment10C  30C, 80%RH, non-condensing; operability guaranteed between 5C and 40C



Auxiliary Display Model Available as an Accessory
